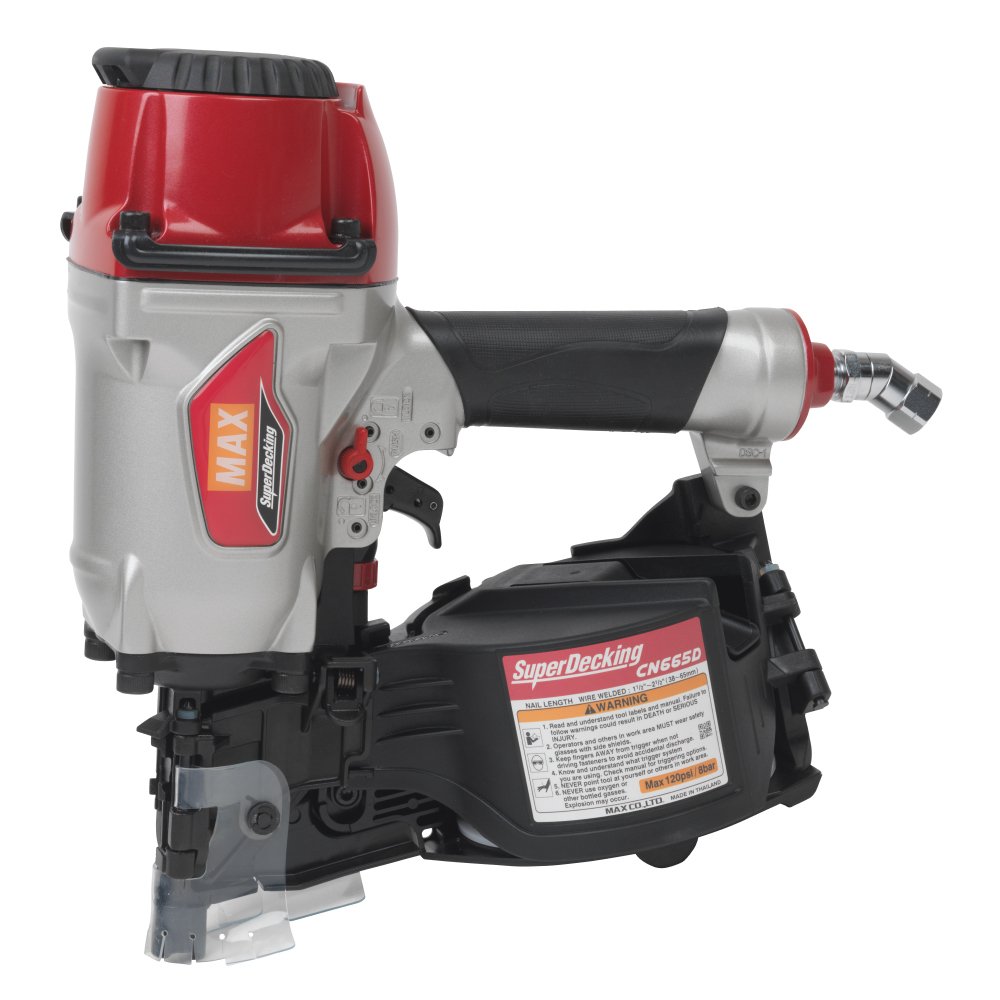

CN665D Decking Coil Nailer up to 2-1/2″

CN665D
Decking Coil Nailer up to 2-1/2″

Applications
Decking
Sheathing
Subflooring
Siding

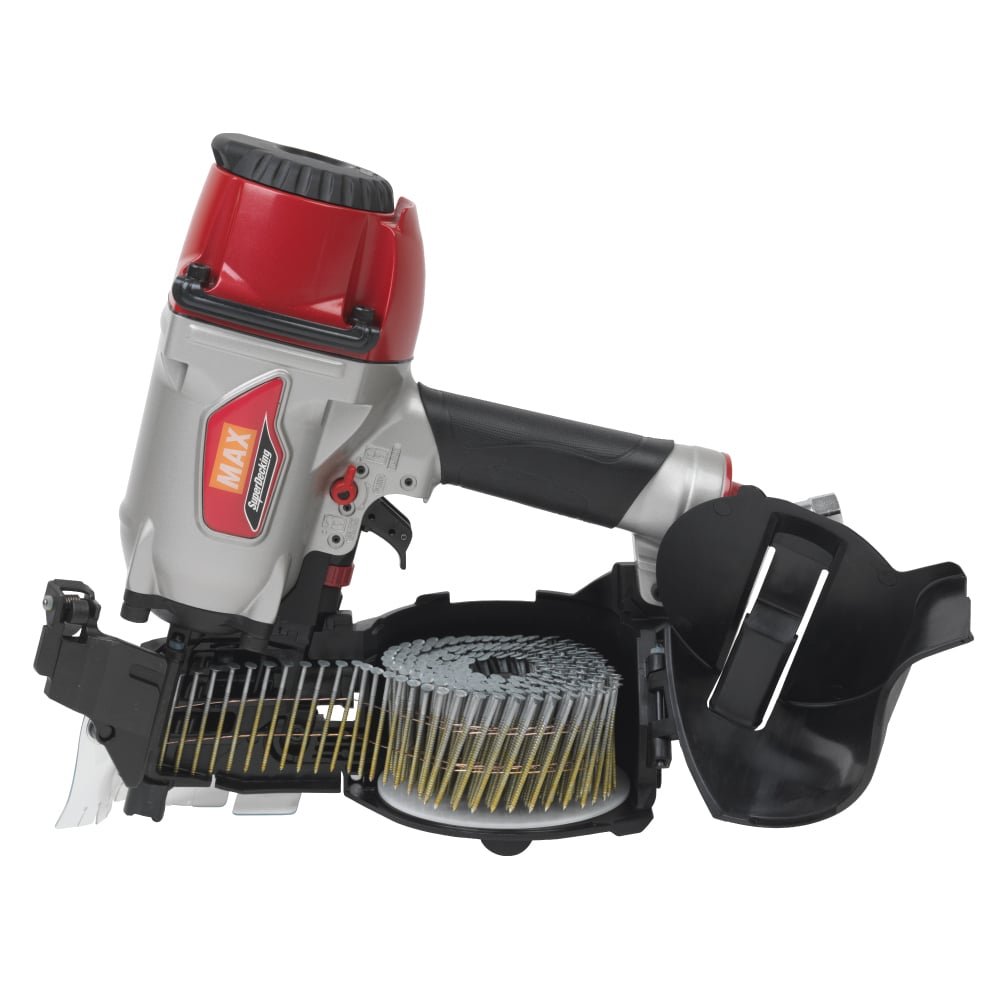

With a large capacity magazine of 300 nails and a maximum fastener size of 2 ½” x .131”, the safety equipped CN665D SuperDecking® tool is ideal for sheathing, subflooring, roof decking, exterior deck and siding. With an integrated contact actuation trigger which enables efficient fastening, carpenters can quickly finish their installations, reducing the probability of developing fatigue while you work.

Features

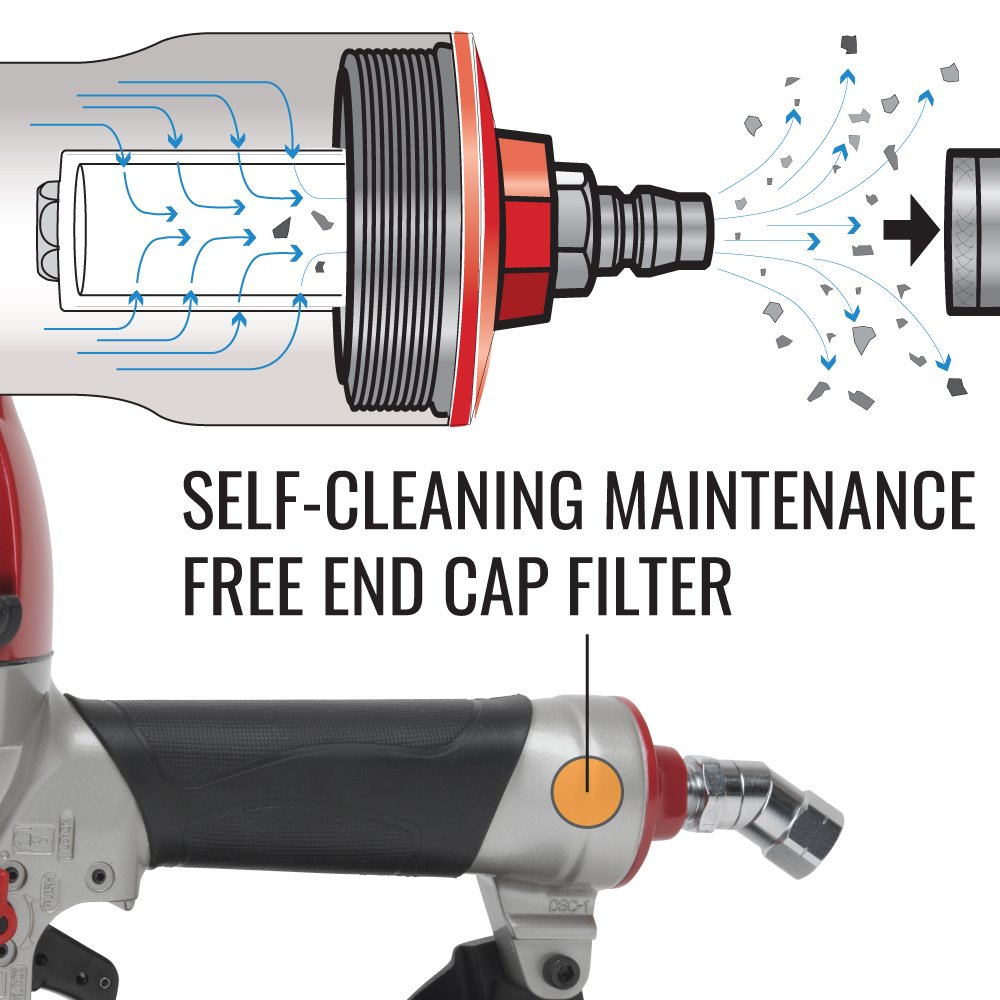

SELF CLEANING TOOL
The patented, self-cleaning maintenance free end-cap filter captures foreign substances before they can enter the tool and automatically ejects them when the air hose is disconnected.
CONSISTENTLY AND ACCURATELY SHOOTS NAILS
The depth adjustment dial allows operators to effortlessly drive nails into hard materials, and also control depth of drive when fastening soft materials, for a consistently polished finish.

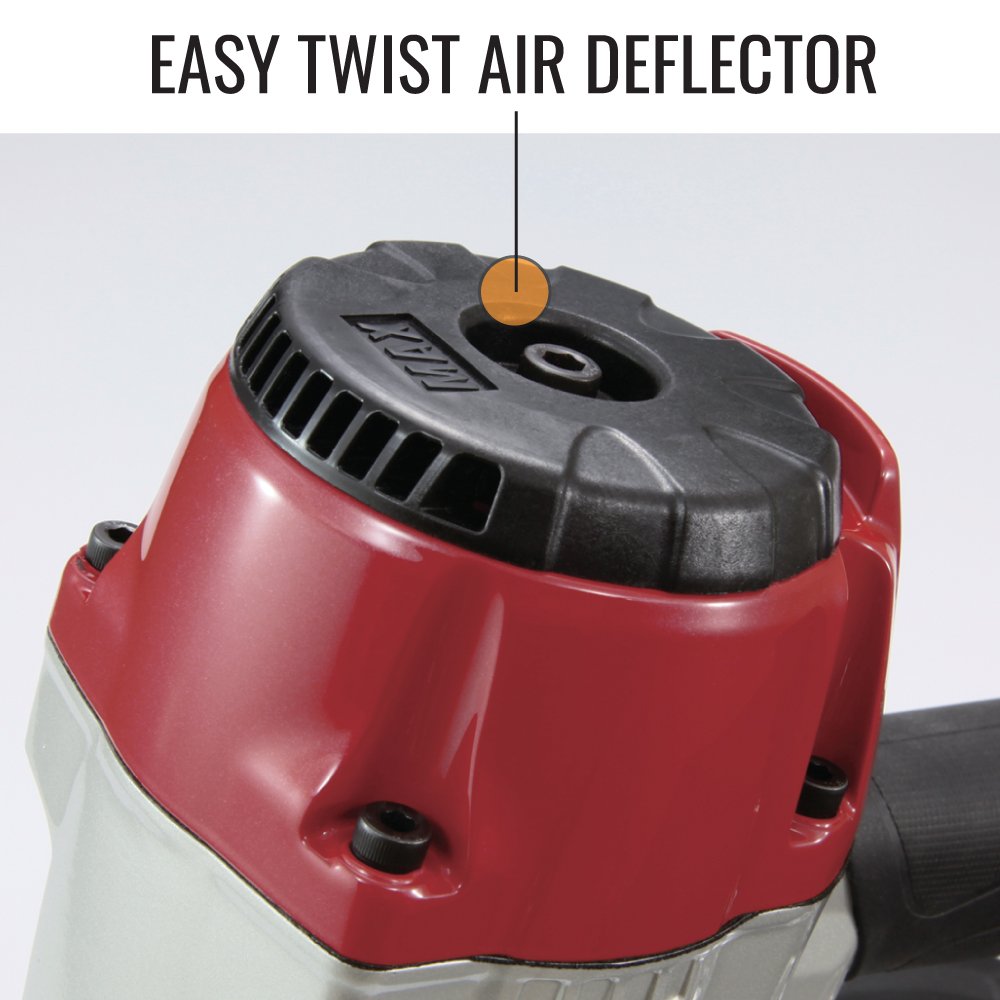

DIVERT EXHAUST AIR AWAY FROM YOUR FACE
An easy twist air deflector cap rotates 360 degrees to divert exhaust air away from the user.

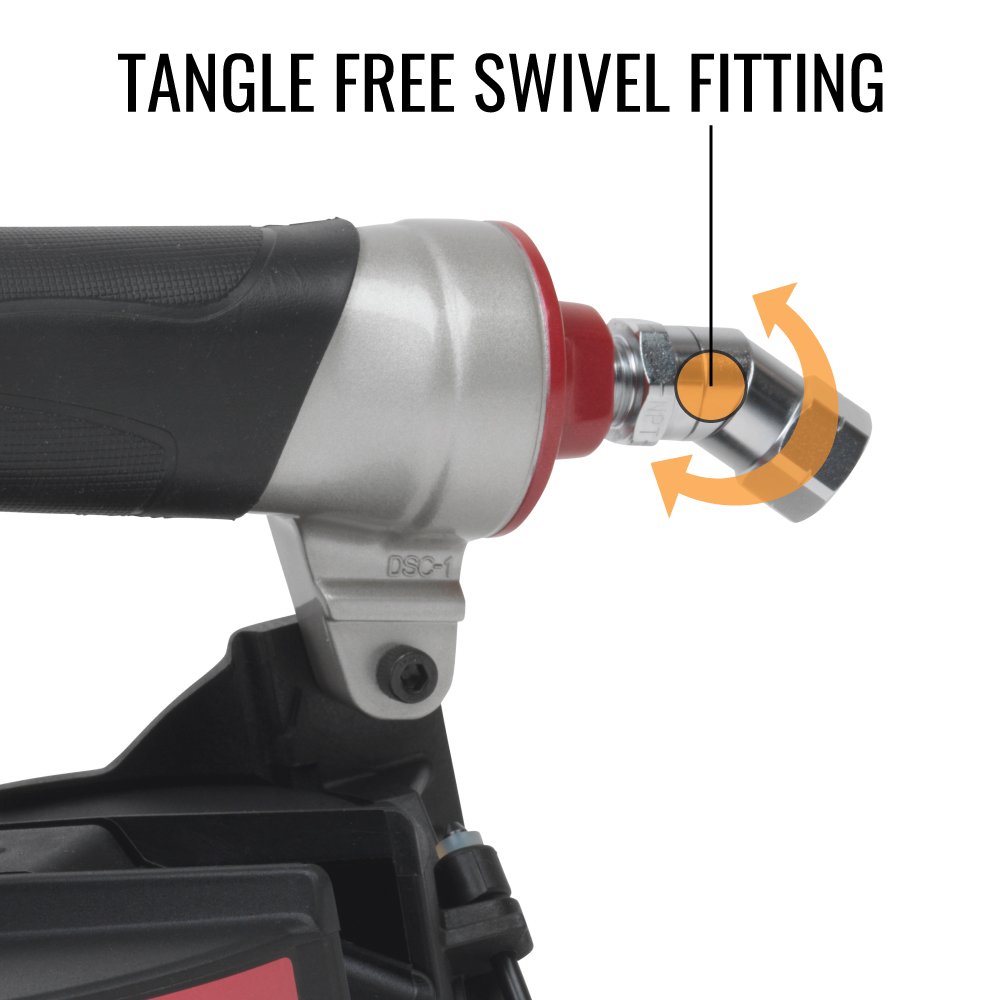

NO MORE TANGLED AIR HOSE
A tangle free swivel fitting prevents the hose from tangling no matter the direction the tool is being held.
Specifications
WEIGHT
6.2 lbs
DIMENSIONS
12 5/8″(H) x 5 1/8″(W) x 11″(L)

MINIMUM OPERATION PRESSURE
70 PSI
MAXIMUM OPERATION PRESSURE
120 PSI
AIR INLET SIZE
1/4″
MAGAZINE CAPACITY
300
DEPTH CONTROL
Yes
JAM CLEARING
No
TRIGGER TYPE

Rapid Fire Trigger

AIR CONSUMPTION
(FT3/CYCLE)
0.043
ACCESSORIES
Safety glasses
Fasteners
COLLATION TYPE
Wire
NAIL GUN ANGLE
15

STRIP OR COIL
Coil
COMPATIBLE FASTENER TYPES
Wire welded Coil nails
MINIMUM FASTENER SIZE
1-1/2″
MAXIMUM FASTENER SIZE
2-1/2″
MINIMUM NAIL DIAMETER

.092″

MAXIMUM NAIL DIAMETER
.131″
